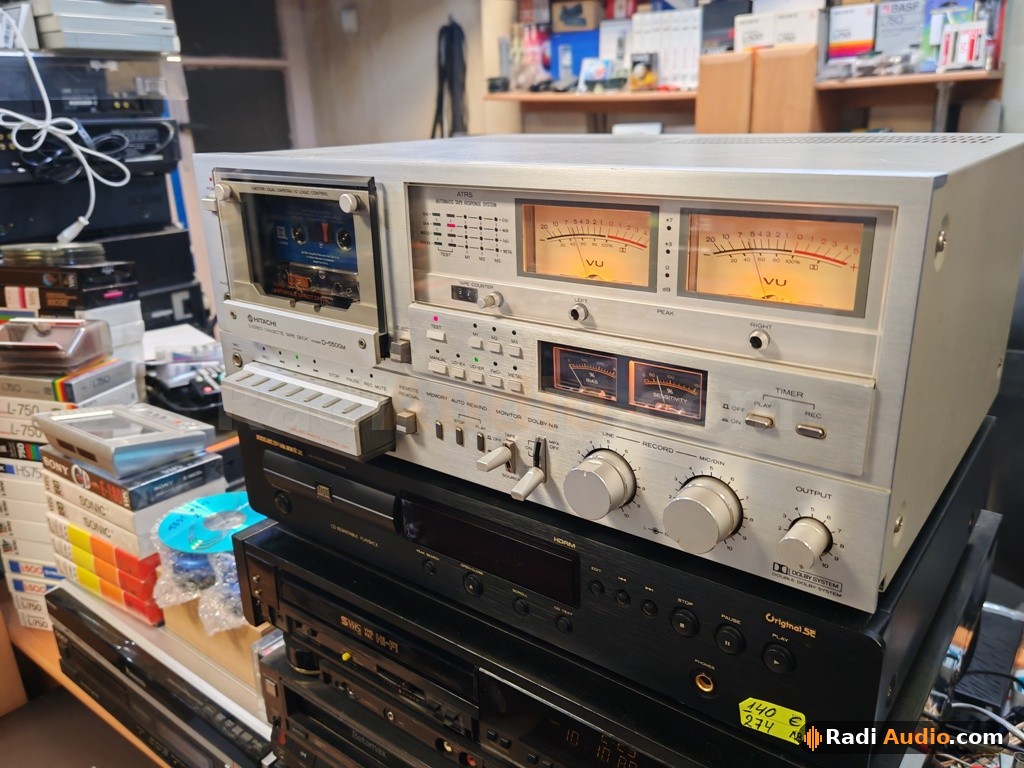

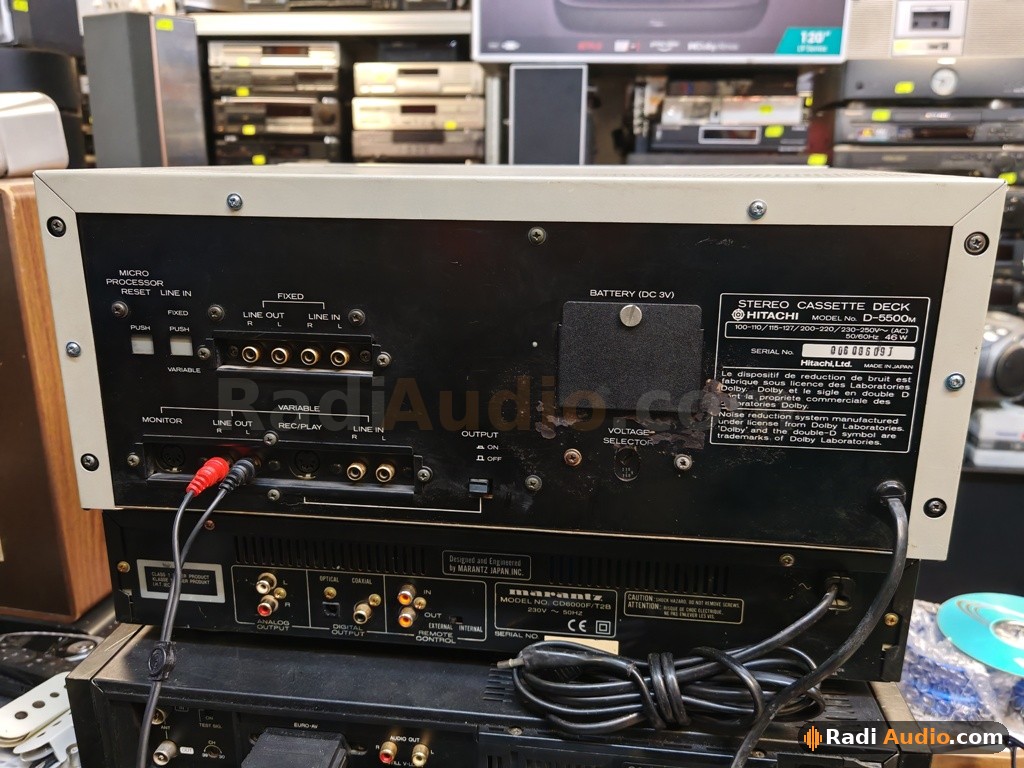

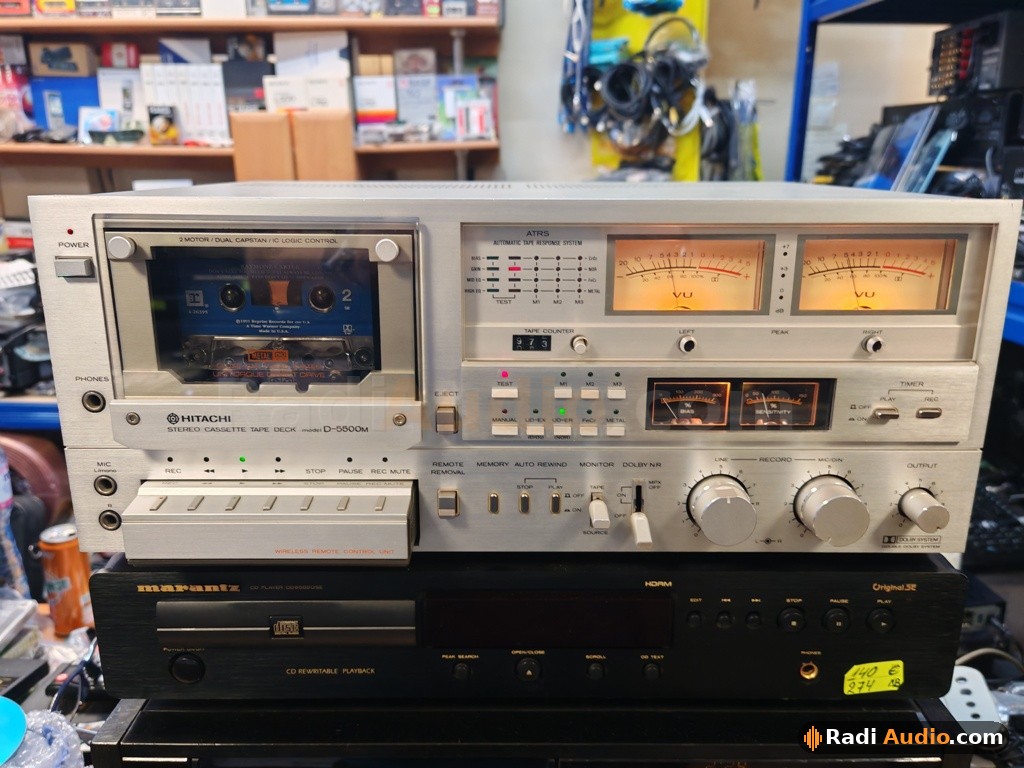

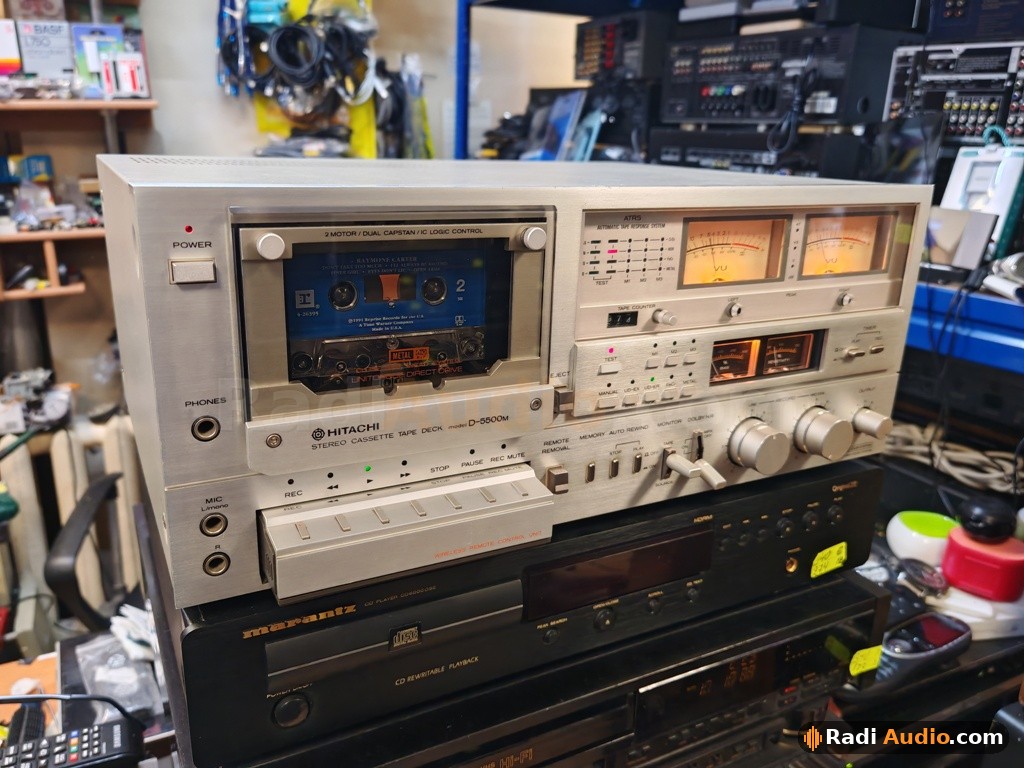

HITACHI D-5500

Manufacturer:Hitachi Model: D-5500 Type: Cassette Tape Deck Years of manufacture: 1979 - 1980 Made in: Japan Color: Silver Remote control: yes, removable Power consumption: Dimensions: 435 x 186 x 320 mm (WxHxD). Weight: 14 kg Original price approx.: 2'500 DM Connections Number of inputs: Microphone: 0.35 mV, 300 Ohm - 5 kOhm Line In: 60 mV, 100 kOhm Line In DIN: 0.35 mV, 4.7 kOhm Number of outputs: Line Out: 550 mV, 50 kOhm Line Out DIN: 50 mV, 50 kOhm Headphones: 8 Ohm - 2 kOhm Technical Data Audio heads: 3 motors: 2x, direct drive Synchronization fluctuations: 0.028 % (WRMS) Tape types: I, II, III Frequency response: I (Normal): 30 - 19'000 Hz II (Chrome): 20 - 20'000 Hz III (FeCr): 20 - 20'000 Hz Distortion factor: 1.2 Signal-to-noise ratio: Dolby NR "OFF" 60 dB Dolby NR "ON" 68 dB Dolby: B MPX Filter: Fader: Pitch Control: Crosstalk attenuation: > 65 dB at 1 kHz Cancellation attenuation: > 65 dB Premagnetization and erasure frequency: 105 kHz Rewind time: 70 seconds for C-60 Special Features Remote control removable
